Placing the platter and the felt mat

This product requires some assembly before using it for the first time. Do not connect the AC adapter until assembly is complete.

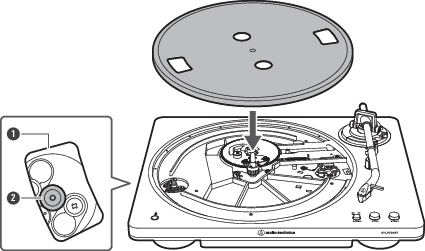

1. Set the platter on the spindle.

   • To avoid damaging the spindle when seating the platter, align the positions of the spindle and the platter’s hole, and then slowly seat the platter.
   • Align one of the openings with the position of the motor pulley (brass-colored).
   • Make certain that the platter is fully seated on the spindle.



   1. Opening
   2. Motor pulley (brass-colored)

2. Attach the drive belt to the motor pulley (brass-colored).

   • Align one of the platter openings with the motor pulley (brass-colored), and, while pulling both ends of the red ribbon that comes attached to the drive belt, place the drive belt on the motor pulley (brass-colored), as per the diagram. When doing this, be careful not to twist the drive belt.



3. Remove the red ribbon from the drive belt.



4. Set the felt mat on the platter.
