System connection examples

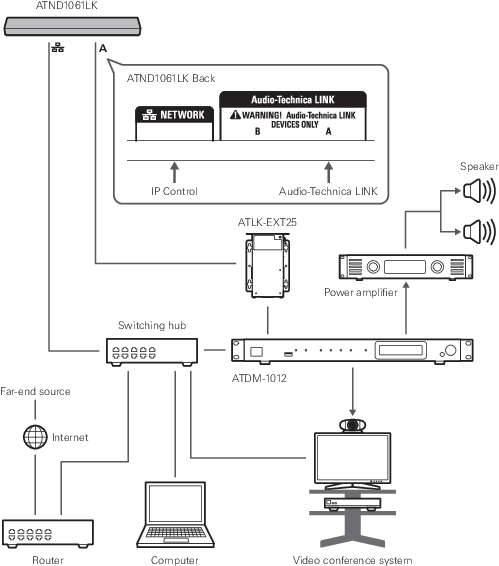

ATND1061LK (connecting only one unit)

	An AC adapter (sold separately) or PoE switching hub is necessary to use ATLK-EXT25.

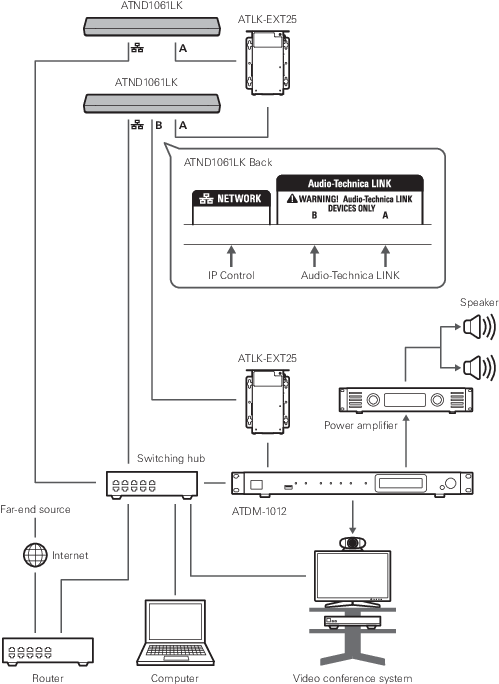

ATND1061LK (connecting multiple units)

	An AC adapter (sold separately) or PoE switching hub is necessary to use ATLK-EXT25. The number of units that can be connected from the ATLK-EXT25 depends on the installation environment of the second and subsequent ATND1061LK units. Confirm compatibility in advance with the Audio-Technica simulator, or contact your local Audio-Technica dealer.

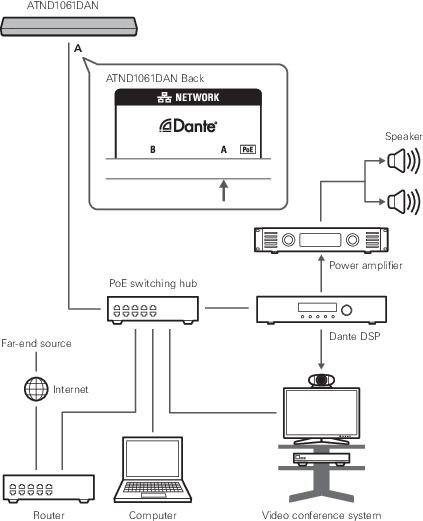

ATND1061DAN (single cable mode)

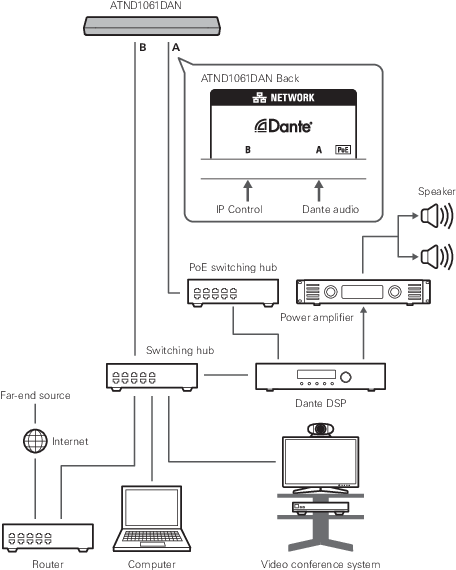

ATND1061DAN (split mode)

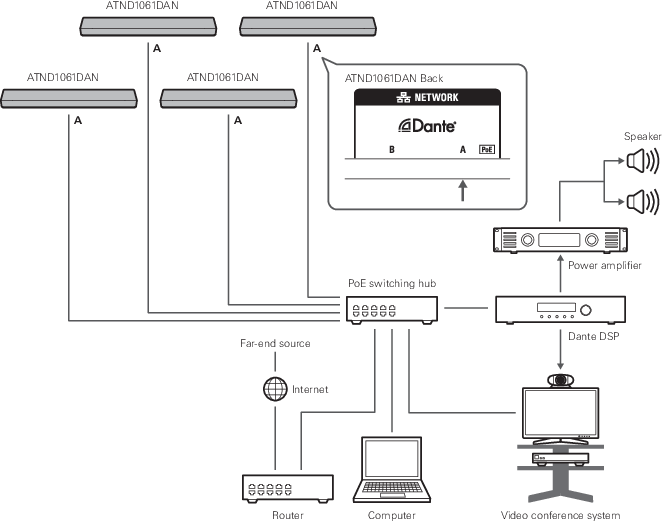

ATND1061DAN (connecting multiple units)

	For details on auto mix settings when connecting multiple units, see the user manual -Digital Microphone Manager Edition-.

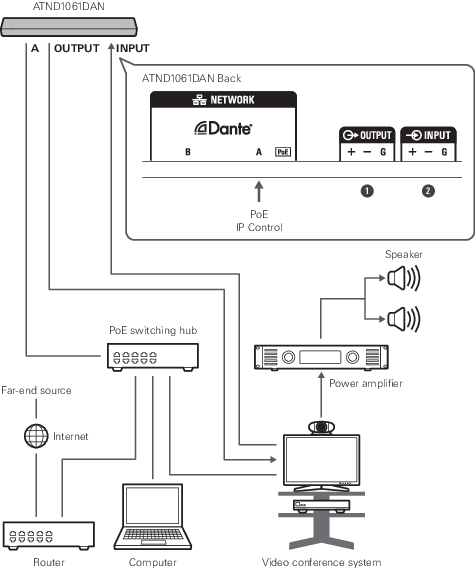

ATND1061DAN (single cable mode and analog I/O)

1. OUTPUT: Connection to analog input for video conference system (far-end transmission)
2. INPUT: Connection to analog output for video conference system (far-end source)
