Placing the platter

This product requires some assembly before using it for the first time. Do not connect the AC adapter until assembly is complete.

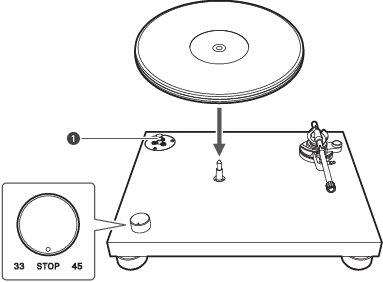

1. With the power turned off, set the platter on the spindle.

   • Make sure that the control knob is in the "STOP" position.
   • Do not mistake the front and back of the platter. The side where you can see the hexagonal nut is the back side of the platter.
   • To avoid damaging the spindle when seating the platter, align the positions of the spindle and the platter’s hole, and then slowly seat the platter.
   • Make certain that the platter is fully seated on the spindle.



   1. Motor pulley

2. Attach the drive belt to the motor pulley.

   • Make sure that the belt does not get twisted.
   • The belt is pre-installed on the side of the platter. If it is dislodged, attach it to the side of the platter and then to the motor pulley.
