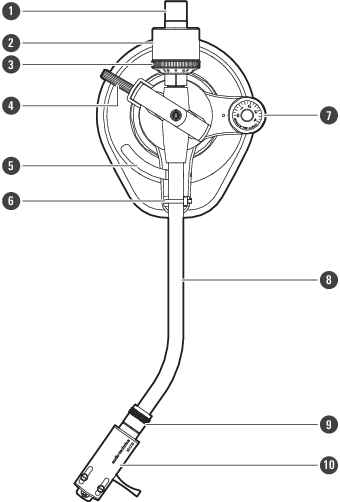

Tonearm

1. Subcounterweight

   Attached when the tonearm’s balance cannot be adjusted using the counterweight alone.

2. Counterweight

   Balances the tonearm and adjusts to provide the proper tracking force.

3. Tracking force gauge ring

   Use to adjust the tracking force.

4. Tonearm height adjustment lever

   Move it to the left or right to adjust the tonearm’s height.

5. Tonearm lift

   Moves the tonearm vertically to and from the face of the record.

6. Tonearm rest with clamp

   Use the clamp to secure the tonearm so that it does not move.

7. Anti-skate control dial

   While the record is playing, a force acts on the stylus tip to pull it inward. This force can be counteracted by setting the same values for anti-skate and the tracking force.

8. Tonearm

9. Locking ring

   Rotate the ring to the left (counterclockwise) to secure the headshell. To remove the headshell, rotate the ring to the right.

10. Headshell and cartridge

    The cartridge is attached to the headshell.
