Installing the dust cover

The dust cover is designed to protect the product’s sensitive components from foreign materials such as dust when the product is not in use.

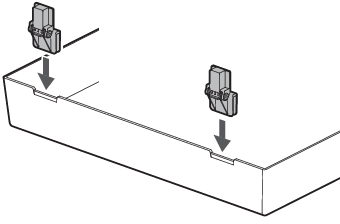

1. Attach the dust cover hinges to the slots on the dust cover.

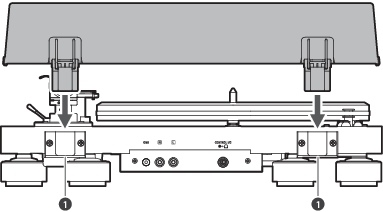

2. Insert the hinges of the dust cover into the two dust cover hinge holders on the back of the body.



   1. Dust cover hinge holder

	When removing the dust cover, slowly pull the dust cover out from the dust cover hinge holders on the body.
