Replacing the rechargeable battery

If the product’s usage time is short even though it has been sufficiently charged, the rechargeable battery may have reached the end of its service life. If this is the case, you will need to replace the rechargeable battery by purchasing a new one. Rechargeable batteries can be purchased from your local Audio-Technica dealer.

• Replacement must be performed by a professional in countries where replacement rechargeable batteries are not sold. Please contact your local Audio-Technica dealer.

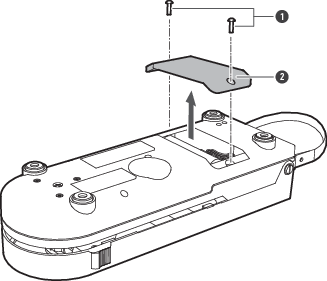

1. Remove the two screws on the bottom of the product using a commercially sold Phillips-head screwdriver and remove the battery cover.



   1. Screws
   2. Battery cover

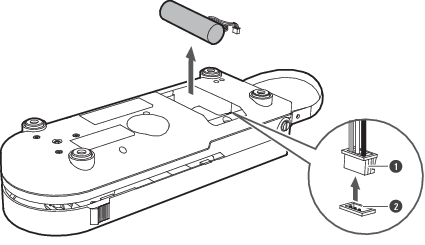

2. Remove the rechargeable battery from the product and remove the plug from the connector.



   1. Plug
   2. Connector

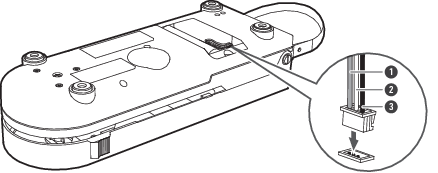

3. Firmly insert the plug of the new rechargeable battery into the connector and install the rechargeable battery.

   • Pay attention to the colors of the plug cables.



   1. Red
   2. Yellow
   3. Black

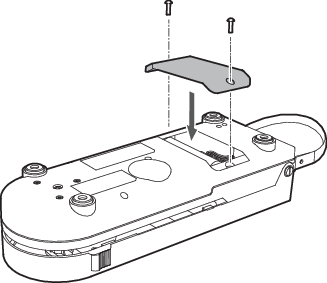

4. Reinstall the battery cover and screws.

   • Take care to prevent the cable of the rechargeable battery from being caught by the battery cover.



	Replace the rechargeable battery only after confirming that the product has been turned off.
