Connecting the speakers

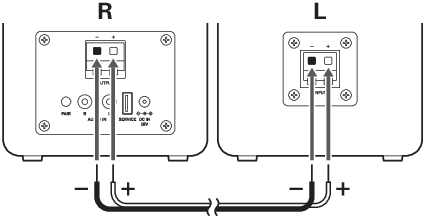

Use the speaker cable to connect the speakers (L/R) to each other.

1. Press the tabs on the speaker cable terminals on the back of the speaker and insert the speaker cable.

   • Connect the speakers (L/R) to each other by matching the polarity of the speaker cable terminals (red terminal= positive (+), black terminal = negative (−)).
   • Be sure to connect the speaker cable terminals of the same color.
