Using the loopback function

Loopback function

When you turn loopback on, the sound playing on the computer, smartphone/tablet, or other device and the sound input to this product are mixed in stereo and this mix is output to the device, allowing you to:

  • Livestream with sound played on the device as background music.
  • Sing or play an instrument at the same time as audio recorded with—or music created with—DAW software plays on the device.
  • Stream the sounds from a game played on the device together with audio picked up by the microphone.

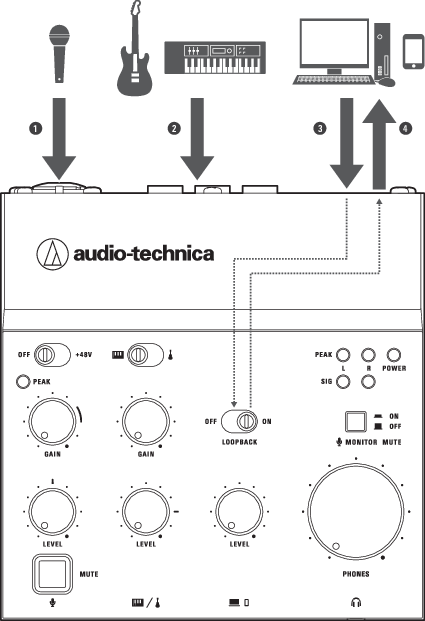

  1. Audio from the microphone input
  2. Sound from the line inputs
  3. Sound from the USB input
  4. Sound from USB input mixed in stereo into audio from microphone input and sound from line inputs

Turning the loopback function on

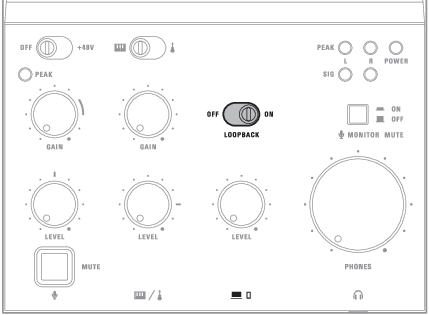

  1. Slide the loopback switch to the ON side.
