Attaching the windshield (BP3600/WS) (sold separately)

Make sure to attach the windshield before attaching the microphone module to the core body.

1. Hold the top and bottom sections of the windshield and rotate them to take the windshield apart.

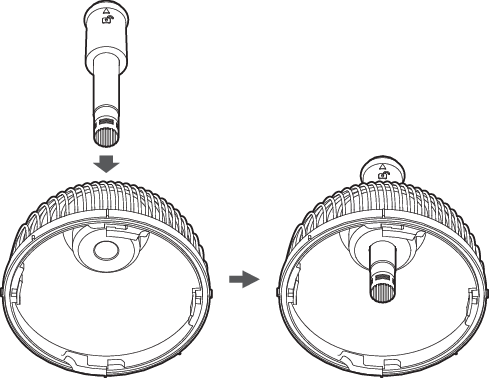

2. Attach the bottom section of the windshield to the microphone module.



3. Attach the top section of the windshield to the bottom section, then rotate it to secure the two halves.

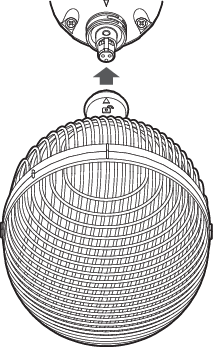

4. Attach the microphone module to the core body.



Removing the windshield (sold separately)

Make sure to remove the windshield after removing the microphone module from the core body.

1. Rotate the top section of the windshield to take it off.



2. Push the microphone module out from the inside of the windshield.
