Utilities (System Settings)

This item is displayed only when a microphone is connected.

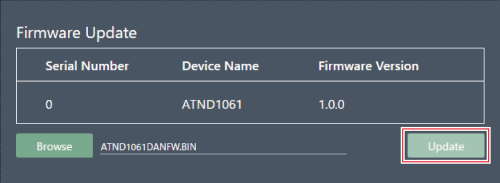

Firmware Update

Use this procedure to update microphone firmware.

1. Use the “Serial Number”, “Device Name”, and “Firmware Version” shown on the screen to determine whether the microphone is subject to an update.

2. Click “Browse”.



3. Select a file to be updated from the file selection screen.

4. Click “Update”.



   The update will start. Once the update is complete, the microphone will automatically reboot.

5. Check the version.

   • Check the version in “System Info” to confirm that the firmware was correctly updated.

6. The microphone will be reset to factory default.

The firmware can also be downloaded from Digital Microphone Manager if using the latest version of the software application. When “Download for firmware update” appears on the screen, click “Download” to download the latest firmware. If the microphone is not reset to its factory default after the firmware update, the port number may default to “80” when using the camera linking function with VISCA over IP. In this case, you will need to manually set the port number again.

Reset All Settings to Default

All microphone settings will be reset to factory default.

• However, the firmware version will remain the same.

1. Click “Reset”.



2. Click “Yes” in the message.

   Initialization will start. Once initialization is complete, the microphone will automatically reboot.
