With a Dante-compatible device (ESW-R4180DAN)

This system receives signals from eight transmitters with a single receiver and can output Dante-output audio.

1. Install Wireless Manager on a PC.

   • From our company website (https://www.audio-technica.com/), select your country or region, and then download the program from the corresponding website.

2. Connect the receiver to a Dante-compatible mixer with a LAN cable.

   • Refer to How to install the receiver for how to install the receiver.
   • For the LAN cable, use a Cat. 5e or higher, shielded cable with conductor size of 24AWG or greater in diameter.
   • Connecting the LAN cable to a PoE power supplying switch turns the receiver on. After some tens of seconds, the status indicator lamp lights.

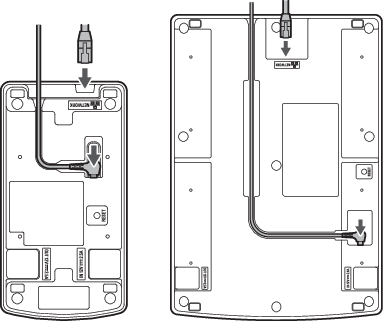

3. Attach a LAN cable and the power cord of the AC adapter to the charging station, and then connect the power plug to an electrical outlet.

   • For the LAN cable, use a Cat. 5e or higher, shielded cable and connect to the same network as the receiver.
   • The charging station turns on and its power indicator lamp lights.

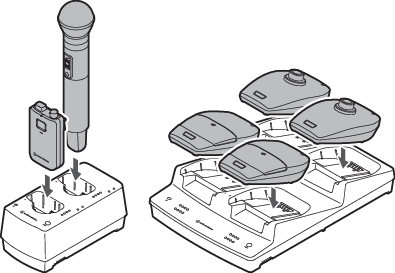

4. Insert the transmitters to use into the charging station.



5. Connect the PC to the same network as the receiver and charging station.

   • With the factory default setting, the IP addresses of the receiver and charging station are set to “Auto”. Configure the PC so that its IP address setting is acquired automatically.

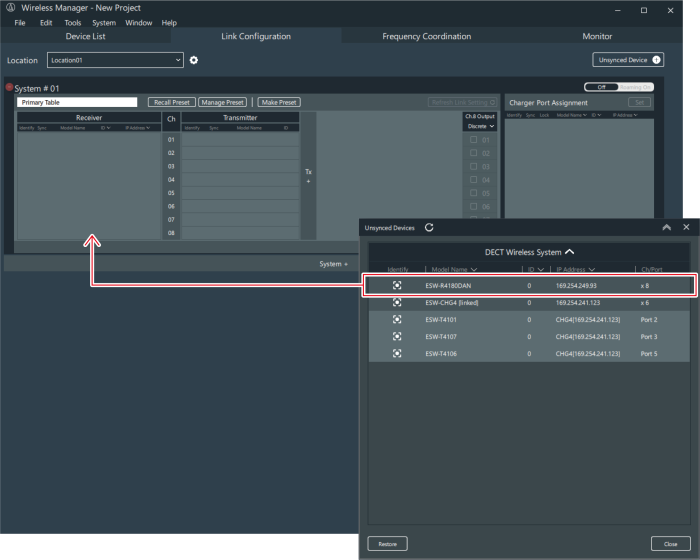

6. Start Wireless Manager, and then configure the link to each device.

   • Refer to Configuring links to devices for details.



7. Assign this mixer with Dante Controller, and then set the audio output.

   • You can download Dante Controller from the Audinate website (https://www.audinate.com/).

8. Remove the transmitters from the charging station.

9. Press and hold the power button on each transmitter (the PUSH button for the ESW-T4101) for approximately 2 seconds, and then release the button.

   • When the link between the receiver and the transmitter is established, the link indicator lamp on the receiver and the status indicator lamp on the transmitter light.
   • It may take some time (approximately 10 seconds) for the first link to be established.

10. Check the audio input.

11. Monitor each device in Wireless Manager.
